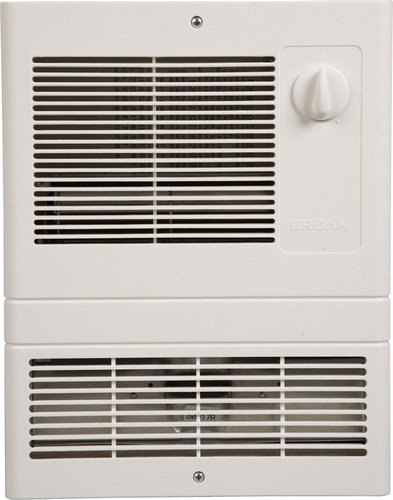

Nutone 9815WH wall Heater
Choose The Nutone 9815WH Heater When You Need More Power For High Heat Loss Areas. Nutone's 9815WH Heaters are an Ideal Solution For Lobbies, Entrance Ways, Vestibules or any Area Requiring High Wattage Heating. Our Low Profile Models Feature an Energy Saving, Built In Fan Delay Switch Allowing the Heating Element to Warm Up Before Fan Starts. To Ensure Proper Shutdown, and Maximize Heat Delivery, The Heater Remains On as the Element Cools Down Nutone 9815WH Heater Attractive White Grille Exceptionally Durable and Heat Resistant Quiet Fan and Down flow Action Circulates Heated Air Quickly Two Models Offer Wattage Choice: 1000W or 1500W. 9815WH Heaters Easily Wired at Installation for 120V or 240V. Over Temperature Protected by Thermal Fuse Built in Adjustable Thermostat. Quiet Thermally Protected Motor and Transverse Flow Blower Long life Bearings with Extra Large Oil Reservoir Hang Tab Aids Installation MOTOR: Thermally Protected, Shade Pole,Sleeve Bearings On and Off
Grille 11 9/16 wide x 14 3/4 high
Rough in Box 10 1/2 wide x 12 1/2 high x 3 3/8 deep
120 v or 1000w or 240 v 1500w
fan forced heat with thermostate
Nutone 9815WH wall Heater
Specifications
| Depth |
3.375 |
| Grille Length |
14.75 |
| Grille Width |
11.5625 |
| Heater Included |
Yes |
| Heater Type |
Wall Heater |
| Height |
12.5 |
| Housing Depth |
3.375 |
| Housing Length |
12.5 |
| Housing Width |
10.5 |
| Includes Thermostat |
Yes |
| Product Weight |
10 |
| Watts |
1500 |
| Width |
10.5 |
