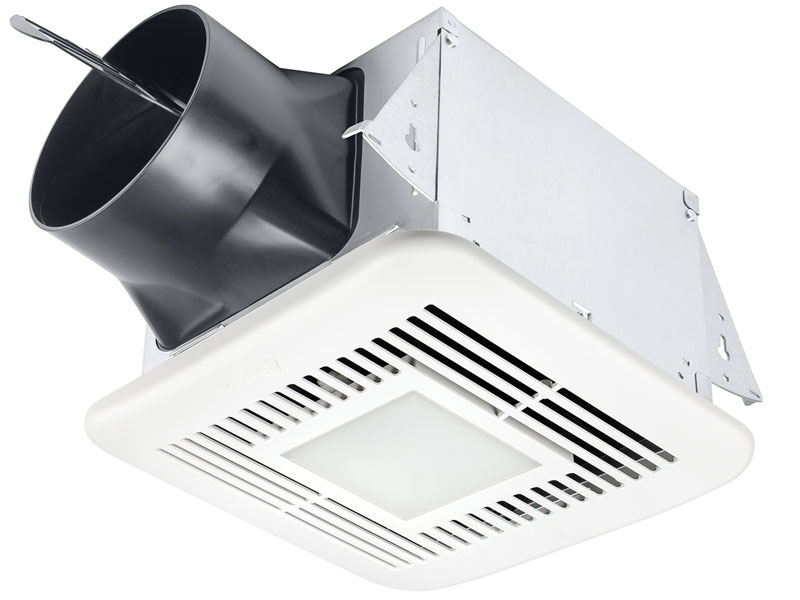

Bathroom Fan- Delta ELT80-110LED

Breez ELT80-110LED ENERGY STAR^® qualified fan is the perfect fit for room side installation, featuring installer-friendly pocket mounting brackets & adjustable high-speed options for an affordable price.

Delta BreezElite ELT80-110LED is ENERGY STAR^® Most Efficient award product, affordable ventilation fan with adjustable high speed options and exclusive, installer-friendly room-side installation system.

Innovative brushless DC motor design for long life, low noise, and low power consumption
Delta Breez model ELT80-110LED has been awarded ENERGY STAR^® qualified with Brushless DC Motor engineered to run continuously for a minimum 70,000 hours; airflow rating of 110 CFM and loudness rating of 0.7 Sones at 0.1 static pressure as certified by the Home Ventilating Institute (HVI); power consumption of 10.3 Watts with efficiency rating of 10.6 CFM/Watt at 0.1” static pressure; fan will feature motor lock protection and self-compensating motor speed for intended airflow when static pressure is encountered. UL and cUL listed for tub/shower enclosure when used with GFCI-protected branch circuit wiring.

Specification Sheet
Installation Guide

ELT80-110LED - 80/110 CFM Exhaust Fan

	6" Duct Standard
Static Pressure (inches w.g.)	0.1	0.25	0.1	0.25
Air Flow (CFM)	80	59	110	89
Sones	0.5	0.9	0.7	1.0
Power Consumption (Watts)	7	9	10.3	13
Energy Efficiency (CFM/Watts)	11.4	6.5	10.6	6.8
Current (Amps)	0.28 Max.
Power Rating (V/Hz)	120/60
LED Main Light (Watts)	13
