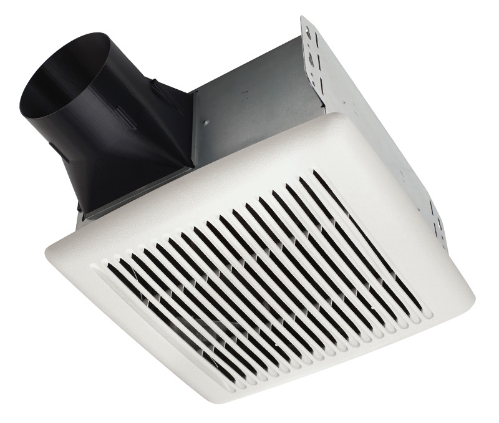

Broan AE110 InVent Exhaust Fan
INVENT SERIES SENSING FANS
This patent-pending series marks a revolution of our mid-range ventilation fans. It gives professionals the flexibility to handle new construction or room-side retrofit installations from one hard-working product line with a full range of operating points. Innovations include FoldAway™ mounting ears and new damper and housing technology that improve building airtightness like never before.
FEATURES & BENEFITS
- Humidity control automatically turns fans ON when a rapid to moderate (user adjustable) increase of humidity is sensed or when humidity rises above the user-adjustable set-point (50% to 80% RH)
- Powerful ventilation reduces humidity to quickly eliminate fogged mirrors and manage moisture, so your vision will always be clear and your surroundings will always be comfortable
- Retrofit installations can be done entirely from the room-side – no attic access required. This means a faster, easier installation
- With our TrueSeal™ Damper Technology, InVent fans reduce air leakage by up to Fifty Percent* compared to competitive models, resulting in better home performance via blower door tests and reducing cold and warm air backdrafts
- EzDuct™ Connector can be installed room-side with no attic access required, fan housing connection have never been easier
- ENERGY STAR® certified product
- UL Listed for use over bathtubs and showers when connected to a GFCI protected branch circuit (ceiling mount only).
Broan AE110 InVent Exhaust Fan
| CFM | | 110 |
|---|
| Recommended Room Size (Sq. Ft.) | | 105 |
|---|
| Sones | | 1 |
|---|
| Room Side Installation | | Yes |
|---|
| Duct Diameter | | 4" |
|---|
| Housing Height | | 5-3/4" |
|---|
| Housing Length | | 9-1/4" |
|---|
| Housing Width | | 10" |
|---|
| Grille Length | | 11-1/2" |
|---|
| Rated Amps | | 0.3 |
|---|
| Watts | | 23.4 |
|---|
| ENERGY STAR® certified product | | Yes |
|---|
| Warranty | | 3 year limited |
|---|
| Nightlight | | No |
|---|
| Grille Width | | 12" |
|---|
| Minimum Construction Space Required | | 2" x 6" |
|---|
| Motor Engineered for Continuous Operation | | Yes |
|---|
| Radiation Damper Available | | No |
|---|
| Voltage | | 120 |
|---|
| UL Listed | | Yes |
|---|
