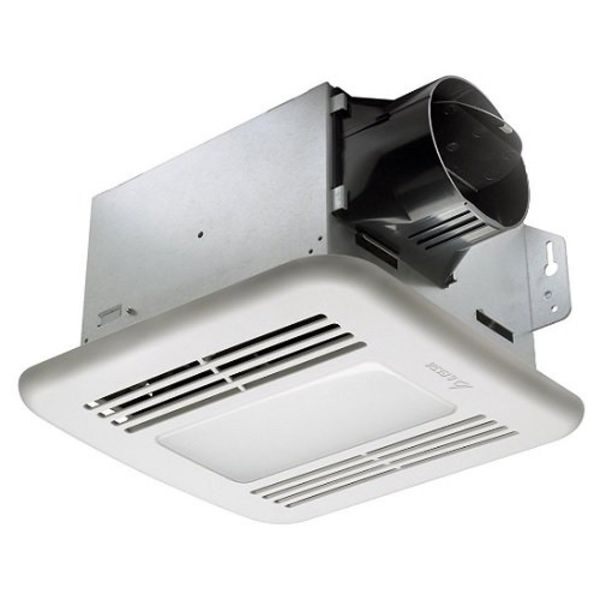

Bathroom Fan- Delta GBR100HLED
The Builder’s Choice for Green Construction.
Delta BreezGreenBuilder ventilation fans mark a new achievement in bathroom ventilation for green construction. Built upon market-leading energy efficiency, exceptionally low power consumption and quiet operation, the BreezGreenBuilder series offers a Dimmable LED Light option as well as humidity sensing option.
BreezGreenBuilder stays true to what has made the GreenBuilder series a winning value proposition for builders and contractors: a super reliable Delta DC brushless motor, a compact lightweight design for quick installation coupled with sound and flow ratings that far surpass building requirements...all at an affordable price.
GBR100HLED - 100 CFM Fan/Dimmable LED Light w/ Humidity Sensor
| Continuous low speed | Full speed |
| Static Pressure (inches w.g.) | 0.1 | 0.25 | 0.1 | 0.25 |
| Air Flow (CFM) | 60 | 42 | 100 | 72 |
| Sones | 0.6 | 1.0 | 1.5 | 1.5 |
| Power Consumption (Watts) | 4.8 | 6.2 | 13.6 | 11.6 |
| Energy Efficiency (CFM/Watts) | 12.5 | 6.7 | 7.3 | 6.2 |
| Current (Amps) | 0.35 Max |
| Power Rating (V/Hz) | 120/60 |
| LED Main Light (Watt) | 13 |
