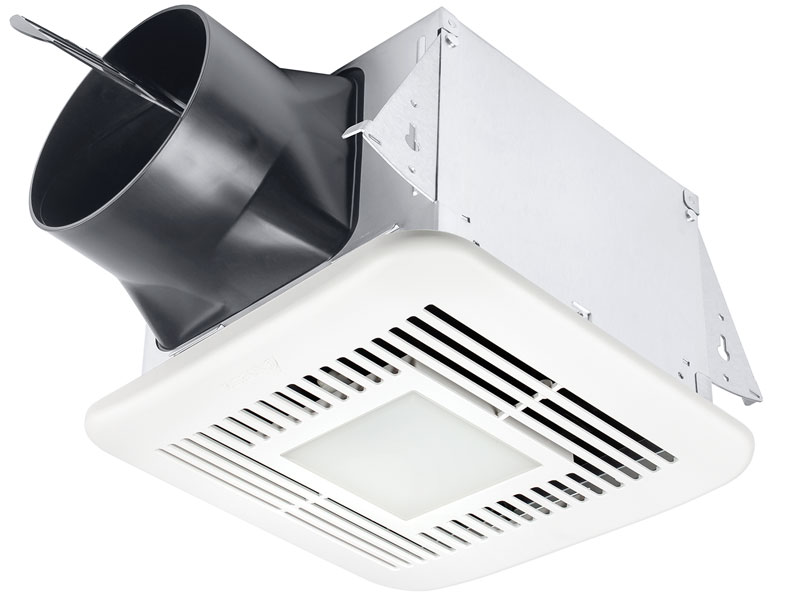

Bathroom Fan- Delta ELT80-110D

Breez ELT80-110D ENERGY STAR^® qualified fan is the perfect fit for room side installation, featuring installer-friendly pocket mounting brackets & adjustable high-speed options for an affordable price.

Delta BreezElite ELT80-110D is ENERGY STAR^® Most Efficient award product, affordable ventilation fan with adjustable high speed options and exclusive, installer-friendly room-side installation system.

Innovative brushless DC motor design for long life, low noise, and low power consumption
Delta Breez model ELT80-110D has been awarded ENERGY STAR^® qualified with Brushless DC Motor engineered to run continuously for a minimum 70,000 hours; airflow rating of 110 CFM and loudness rating of 0.7 Sones at 0.1 static pressure as certified by the Home Ventilating Institute (HVI); power consumption of 10.3 Watts with efficiency rating of 10.6 CFM/Watt at 0.1” static pressure; fan will feature motor lock protection and self-compensating motor speed for intended airflow when static pressure is encountered. UL and cUL listed for tub/shower enclosure when used with GFCI-protected branch circuit wiring.

Specification Sheet
Installation Guide

ELT80-110D - 80/110 CFM Fan Dual Speed

Fan Speed	Continuous Low Speed				Full Speed
Static Pressure	0.1	0.25	0.1	0.25	0.1	0.25	0.1	0.25
Air Flow (CFM)	50	32	80	59	80	59	110	90
Sones	<0.3	0.8	0.5	0.9	0.5	0.9	0.7	1.0
Power (W)	5	6	7	9	7	9	10.3	13
Efficiency (CFM/Watts)	10.0	5.3	11.4	6.5	11.4	6.5	10.6	6.9
Current (Amps)	0.27 Max
Power Rating (V/Hz)	120/60
